Capacitive Touch Display 7" DSI

Capacitive Touch Display 7" DSI Front

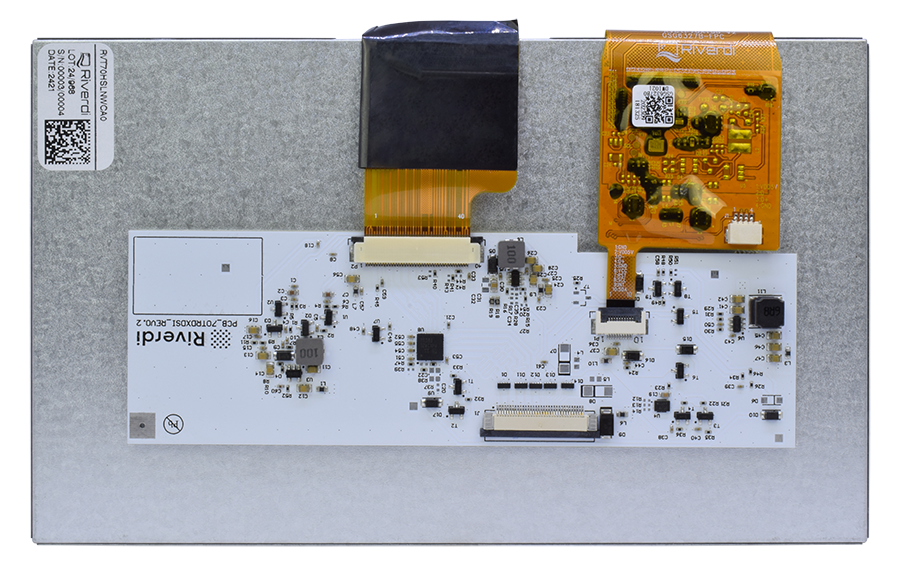

Capacitive Touch Display 7" DSI Back

(Double-Click to Zoom)

Getting Started

This page contains basic information about the 7" DSI Capacitive Touch Display.

Recommendation for a first-time order

To get started with the 7" DSI Capacitive Touch Display, Toradex recommends the following products:

• Aquila SoMs:

  • Aquila AM69

• Aquila Carrier Boards:

  • Aquila Development Board with a Toradex DSI Display Adapter

• Verdin SoMs:

  • Verdin iMX8M Mini
  • Verdin iMX8M Plus
  • Verdin AM62 configurations that support MIPI DSI output

• Verdin Carrier Boards:

  • Mallow Carrier Board
  • Verdin Development Board with a Toradex DSI Display Adapter
  • Dahlia Carrier Board with a Toradex DSI Display Adapter

All the products can be ordered online at Toradex Webshop.

First Steps

Please check the article below for all details on using the display.

First Steps with Capacitive Touch Display 7" DSI

Having trouble?

Please contact our technical support. Various options for technical support are mentioned in the article below.

Technical Support Channels

Features

Main Features

• Resolution: 1024x600px
• Display size: 7 inch
• Display type: IPS
• Quad-Lane MIPI® DSI
• Touch panel: Capacitive
• Touch Interface: I2C
• 34-pin, 0.5 mm pitch FFC cable to connect with a Carrier Board

Reference Documents

Datasheet

7" DSI Capacitive Touch Display datasheet

Mechanical Model

A basic 3D model for the 7" DSI Capacitive Touch Display can be downloaded here:

This is a SolidWorks CAD model. You can download the free eDrawings model viewer from SolidWorks here.

• Capacitive Touch Display 7" DSI - 3D EASM model

This is a generic STEP model that can be opened and modified in any 3D CAD.

• Capacitive Touch Display 7" DSI - 3D STEP model

This is a generic 3D PDF model that can be opened in Adobe Reader.

• Capacitive Touch Display 7" DSI - 3D PDF model

Compatible Products

• Aquila AM69
• Aquila Development Board^[1]
• Verdin AM62^[2]
• Verdin iMX8M Mini
• Verdin iMX8M Plus
• Verdin Development Board^[1]
• Mallow Carrier Board
• Dahlia Carrier Board^[1]
• Toradex DSI Display Adapter

[1] Toradex DSI Display Adapter is required.
[2] Only configurations that support MIPI DSI output.

Revision History

Click to See the Product Numbering Scheme

Product Number (PID8) Format

The format of the 8-digits Product Number (PID8) is the following:

The below table describes the structure of the Product Number (PID8):

Field	Description
PPPP	4-digits number, indicating the Product Configuration (PID4) that describes the key properties of the product (e.g. Product Group, RAM capacity, etc.)
VV	2-digits number, indicating the Major and Minor Version (in that order)
AA	2-digits number, indicating the Assembly Variant

See the complete list of available combinations on the Revision History table of the corresponding product page.

Example

Product number (PID8): 00291100:

0029: Apalis iMX6D 512MB
11: Major Version 1, Minor Version 1, Version V1.1 in short
00: Assembly Variant A

A specific product revision has a lifecycle defined by the product state. Learn more about it on the Product Change Notifications.

1214 Capacitive Touch Display 7" DSI

Product #	Product Description	Changes from Previous Version	Release Date	PCN Document
12151000	Capacitive Touch Display 7" DSI V1.0A	Initial Release	Q1'25

Errata/Known Issues

Errata document

There are no errata yet.

Errata/Known issues
