Orchid Carrier Board
(Double-Click to Zoom)
Getting Started
Order details
caution
Orchid Carrier Board is EOL and cannot be ordered anymore. For alternatives please take a look at the other Colibri Carrier Boards.
The Orchid Carrier Board was specifically designed for the use with only Colibri PXA modules: Colibri PXA270, PXA310 and PXA320.
Having trouble?
Please contact our technical support. Various option of technical support are mentioned in the article below.
Features
I/O Support
- Compact Flash Card Interface (1x)
- USB (2x Host, 1x Device)
- I2C (1x)
- SPI (2x)
- UART (2x RS232)
- IrDA (1x)
- PWM (4x)
- GPIO (up to 20)
- Analog Input (4x)
- Ethernet (1x 10/100 Mbit)
- SDIO/SD/MMC (1x 4 Bit)
- VGA (1x)
- RGB (1x 18 Bit)
- Resistive Touch (4-wire)
- Analog Audio In (1x)
- Analog Audio Mic in (1x)
- Analog Audio Headphone out (1x)
- RTC on Board (1x)

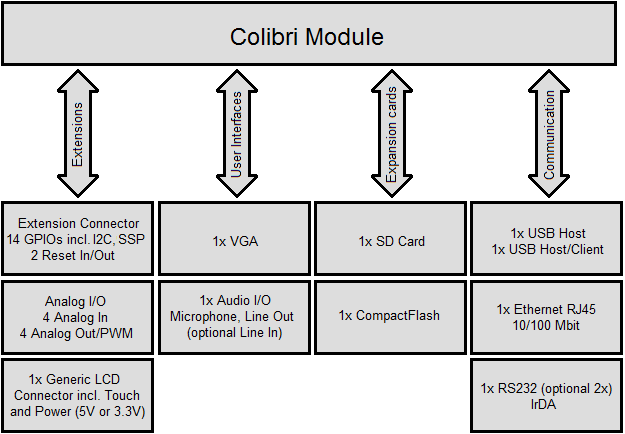

Block Diagram
Datasheets
Orchid Carrier Board Datasheet
Orchid Carrier Board Datasheet V1.2
Compatible Products
- Colibri PXA320
- Colibri PXA310
- Colibri PXA270
- Display EDT
- Carrier Board Accessory Kit
- Capacitive Multi-Touch Display
- LM816 USB WiFi
Revision History
| Product # | Product Description | Changes from Previous Version | Release Date | PCN Document |
| 01031000 | Orchid Carrier Board V1.0A | Initial Release | | Sample Product, No PCN |
| 01031001 | Orchid Carrier Board V1.0B | 2x RS232 | 2006-04 | EOL Notice Orchid Carrier Board V1.0B |
| 01021002 | Orchid Carrier Board V1.0C | 1x RS232 | 2006-08 | EOL Notice Orchid Carrier Board V1.0C |
Errata
None
