Robin Z5xx
Welcome to the product page for the Robin Z5xx computer modules.
caution
All Robin Z5xx modules and related products were phased out. For more details, please refer to Robin Z5xx Product Change Notification.
This page contains a variety of information relating to the Robin Z5xx products and is intended to be used as a single point of access for all information you need.
Getting Started
In order to get started with Robin and Woodpecker please follow the according
guideline:
Robin on Lily V1.1
- Choose a thermal solution (fan connector available on Lily)
- attach display to Lily (both are working, DVI-D and DVI-A(=VGA))
- attach a bootable device (SATA or USB-device) to carrierboard or boot over LAN
- attach USB Keyboard
- plug power connector
- switch on the system by pressing the power button on the carrier
Robin on Lily V2.0
- Choose a thermal solution (fan connector available on Lily)
- attach display to DVI-A(=VGA) or LVDS connector
- attach a bootable device (SATA or USB-device) to carrierboard or boot over LAN
- attach USB Keyboard
- plug power connector
- switch on the system by pressing the power button on the carrier
Main Features
Features of the Robin Z530 L are given below.
Processor
- Intel Atom Z530 with HyperThreading
- 533MHz FSB
- 32kByte Instruction Cache
- 24kByte Level 1 Cache
- 512kByte LEvel 2 Cache
- Intel® System Controller Hub US15W Chipset
- Integrated Intel® Graphics video controller (Intel® GMA 500, HDTV/HD capable decoder for MPEG2(HD)/H.264)
Memory
- 1GB DDR2 (64 Bit)
- 4GB Solid State Disk (SSD)
Interfaces
- PCI Express
- ExpressCard
- 10/100/1000 Mbit Ethernet
- Intel® High Definition Audio (24bit/96kHz)
- Serial ATA (IDE bridge)
- 7x USB 2.0 Full/High Speed (2x dedicated high speed, 1 channel configurable as client)
- On-board MicroSD card slot
- SDIO interface on COM Express connector (4bit)
- SDIO interface on separate FFC connector (8bit)
- Single Channel 18/24 bit WXGA 1366x768
- Analog VGA
- TV Out
- LPC (Low Pin Count) bus
- SMBus
- I2C (via Embedded Controller)
- GPOI x8 (via Embedded Controller, available on FFC or COM Express connector)
Supported operating systems
- Windows XP
- Windows Vista
- Windows 7
- Windows Embedded Standard 7 (WES7)
- Windows Embedded Standard 2009 (WES2009)
- Windows XP Embedded
- Windows CE 6.0
- Linux
Datasheets
Product Datasheet:
Design Guides and Application Notes
Designing your own custom carrier board/hardware?
Check out our carrier
board section including PDF schematics at no cost.
Related Products
Compatible Products and Accessories
Other Related Products
Product Revision History
Product revision history for the Robin Z5xx computer modules.
Robin Z510 S
| Product # | Product Description | Changes from Previous Version | Release Date | PCN Document |
| 01261001 | Robin Z510 S V1.0b | Boost voltage limit 9.5V Less hysteresis on boost converter | 2009-03-09 | |
| 01261004 | Robin Z510 S V1.0e | SPD EEPROM not assembled Low gate threshold voltage FET used | 2009-03-23 | |
| 01261006 | Robin Z510 S V1.0g | Optimization with regard to power consumption (R569). New Phoenix Award BIOS, AMI BIOS label omitted, Adjusted series resistors for crystals, Changed IMVP Gate resistor Pull down for PWR_OK to 1MOhm | 2009-10-29 | |
| 01261008 | Robin Z510 S V1.0i | 5VS switching issue fix | ||
| 01261009 | Robin Z510 S V1.0k | SST85LP1002A-M-C-LBTE (1.7GB SSD) replaces SST85LD1001K-60-PC-LBTE (1GB SSD, EOL) | PCN.2010.10.21.1 Robin Z510 V1.0k | |
| 01262200 | Robin Z510 S V2.2A | PCB thickness increased from 1.6mm to 2.0mm DDR2 RAM configuration changed (different BIOS image necessary) SMB isolation circuit removed Minor schematic and layout changes | PCN.2012.07.12. Robin S Z510 V2.2a | |
| 01262200 | Robin Z530 S V2.2A | Phase-out schedule | 2013-11-15 | PCN.2013.11.15.1 Robin Z5x0 V2.2A |
Robin Z530 M
| Product # | Product Description | Changes from Previous Version | Release Date | PCN Document |
| 01251000 | Robin Z530 M V1.0a | Initial versionBoost voltage 7V | 2008-12-30 | |
| 00021002 | Robin Z530 M V1.0c | Boost voltage limit 9.5VLess hysteresis on boost converter | 2009-03-09 | |
| 01251003 | Robin Z530 M V1.0d | SPD EEPROM not assembledLow gate threshold voltage FET used | 2009-03-23 | |
| 01251005 | Robin Z530 M V1.0f | Optimization with regard to power consumption (R569).New Phoenix Award BIOS, AMI BIOS label omitted, Adjusted series resistors for crystals, Changed IMVP Gate resistor Pull down for PWR_OK to 1MOhm | 2009-10-29 | |
| 01251007 | Robin Z530 M V1.0h | 5VS switching issue fix | ||
| 01251009 | Robin Z530 M V1.0k | New SSD: SST85LP1002A-M-C-LBTE (1.7GB SSD) replaces SST85LD1002L-60-PC-LBTE (2GB SSD, EOL) | PCN.2011.05.15.1 Robin M Z530 V1.0k | |
| 01252200 | Robin Z530 M V2.2A | PCB thickness increased from 1.6mm to 2.0mm DDR2 RAM configuration changed (different BIOS image necessary) SMB isolation circuit removed Minor schematic and layout changes | PCN.2012.07.12. Robin M Z530 V2.2a | |
| 01252200 | Robin Z530 M V2.2A | Phase-out schedule | 2013-11-15 | PCN.2013.11.15.1 Robin Z5x0 V2.2A |

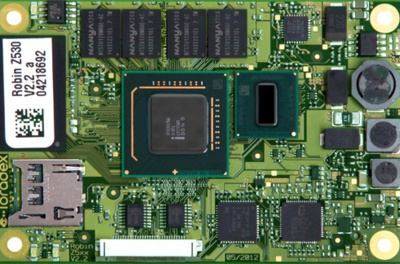

Robin Z530 L
| Product # | Product Description | Changes from Previous Version | Release Date | PCN Document |
| 01252000 | Robin Z530 L V2.0a | Initial Version | ||
| 01252001 | Robin Z530 L V2.0b | 5VS switching issue fix | ||
| 01252002 | Robin Z530 L V2.0c | Ethernet controller RTL8111D-VB-GR replaces RTL8111C RTL8111D supports jumbo packets | PCN.2011.05.03.1 Robin Z530 V2.0c | |
| 01252100 | Robin Z530 L V2.1a | GLS85LP1004BCB0-M-C-LFTE (4GB SSD) replaces GLS85LP1004A (4GB SSD, EOL) Micro SD socket Amphenol 101-00581-59 replaces JAE ST2S008V1A (EOL) | PCN.2012.01.03.1 Robin Z530 V2.1a | |
| 01392200 | Robin Z530 L V2.2A | Minor schematic and layout changes, optimizations for manufacturing | PCN.2012.07.09.1 Robin Z530 V2.2a | |
| 01392200 | Robin Z530 L V2.2A | Phase-out schedule | 2013-11-15 | PCN.2013.11.15.1 Robin Z5x0 V2.2A |
