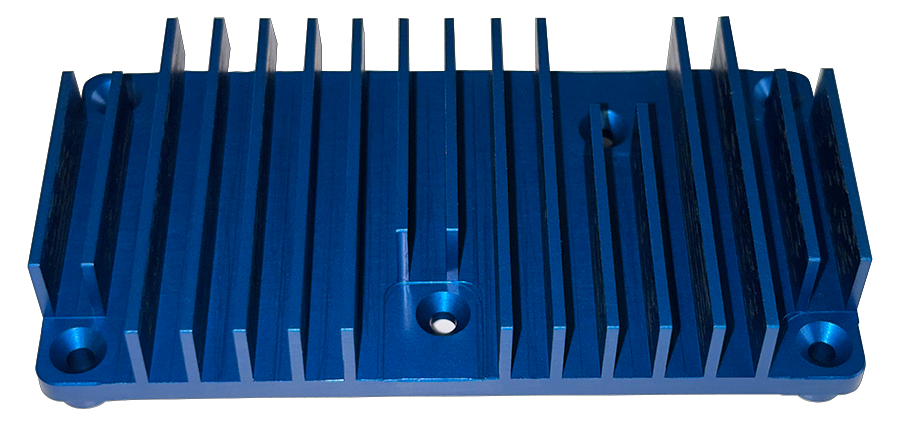

SMARC Heatsink Passive
Getting Started
What I need to order
The SMARC Industrial Heatsink can be ordered with SMARC modules.
Where do I order
All the products can be ordered online at Toradex Webshop.
Having trouble?
Please contact our technical support. Various option of technical support are mentioned in the article below.
Features
Main Features
- Universal thermal solution for the SMARC product family
- Mounting by 6x screws (included)

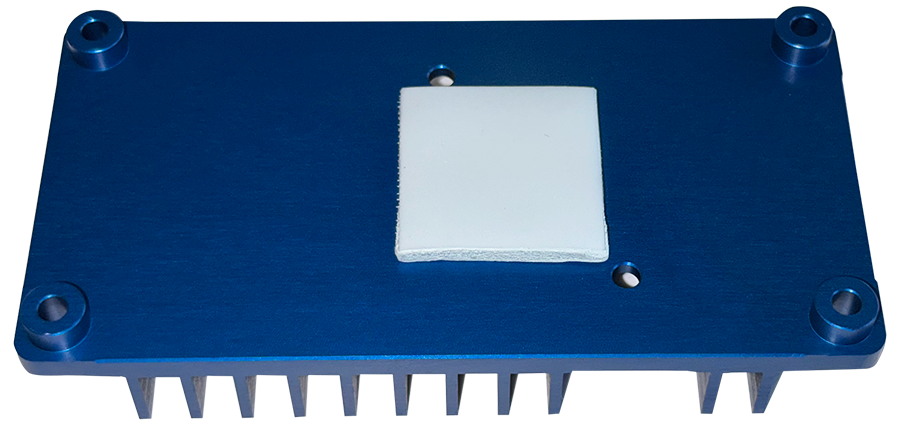

- Includes the Thermal Interface Material (TIM)
Datasheets
SMARC Heatsink Passive V1.0B
SMARC Heatsink Passive V1.0B Datasheet
Design Resources
SMARC Heatsink Passive V1.0B Mechanical Models
A basic 3D model for the SMARC Heatsink Passive V1.0B can be downloaded here.
This is a SolidWorks CAD model. You can download the free eDrawings model viewer from SolidWorks here.This is a generic STEP model that can be opened and modified in any 3D CAD.Design and Layout Guide
Coming soon
Compatible Products
Revision History
Click to See the Product Numbering Scheme
Product Number (PID8) Format
The format of the 8-digits Product Number (PID8) is the following:
The below table describes the structure of the Product Number (PID8):
| Field | Description |
|---|---|
| PPPP | 4-digits number, indicating the Product Configuration (PID4) that describes the key properties of the product (e.g. Product Group, RAM capacity, etc.) |
| VV | 2-digits number, indicating the Major and Minor Version (in that order) |
| AA | 2-digits number, indicating the Assembly Variant |
See the complete list of available combinations on the Revision History table of the corresponding product page.
Example
Product number (PID8): 00291100:
0029: Apalis iMX6D 512MB11: Major Version 1, Minor Version 1, Version V1.1 in short
00: Assembly Variant A
A specific product revision has a lifecycle defined by the product state. Learn more about it on the Product Change Notifications.
2316 SMARC Heatsink Passive Type 1
| Product # | Product Description | Changes from Previous Version | Release Date | PCN Document |
| 23161001 | SMARC Heatsink Passive Type 1 V1.0B | Initial Release | Q2, 2025 |
Errata
None
