How to Configure CPU Usage on Torizon OS

Introduction

This how-to article aims to help you with techniques to limit the CPU usage and/or to isolate CPU cores in the context of containers, guiding you through the steps that you need to perform.

How to discover the SoC’s CPU number

Enter in your board’s terminal via SSH or serial terminal (debug UART). To learn how to use SSH, refer to Establishing an SSH Connection. To learn how to use the debug UART console, refer to Use the Debug UART (Serial Console).
Go to /sys/devices/system/cpu folder.

# cd /sys/devices/system/cpu

List the directory and find how many CPUs are there in your SoM. For example, for Apalis iMX8QM you can see that it has 6 CPUs, numbered from 0 to 5.

# ls
consumers  cpu2  cpu5     hotplug     modalias  possible  smt        vulnerabilities
cpu0       cpu3  cpufreq  isolated    offline   power     suppliers
cpu1       cpu4  cpuidle  kernel_max  online    present   uevent

To discover how the CPUs are ordinated in your system, print the content of the file core_siblings_list inside cpu<i>/topology/ folder. For Apalis iMX8QM, you must iterate from 0 to 5 because, as saw in the previous step, CPUs are numbered from 0 to 5.

# for i in {0..5}; do cat ./cpu$i/topology/core_siblings_list; done
0-3
0-3
0-3
0-3
4-5
4-5

As you can see, the iMX8QM has two different groups of CPUs. CPUs 0 to 3 are part of the same group, as do CPUs 4 and 5.

Refer to your SoMs datasheet to find out what each core is. For Apalis iMX8QM, you can find that it has 4 A53 cores and 2 A72 cores. Therefore, it is concluded that cores 0 to 3 are A53, and 4 and 5, A72.

How to set CPU limits

Quoting Docker Documentation:

The CFS is the Linux kernel CPU scheduler for normal Linux processes. Several runtime flags allow you to configure the amount of access to CPU resources your container has. When you use these settings, Docker modifies the settings for the container’s cgroup on the host machine.

When it comes to setting CPU limits and/or isolating CPU cores, the two most important options of the docker run command are the following ones:

Option	Description
`--cpus=<value>`	Specify how much of the available CPU resources a container can use. For example, `--cpus=0.5` to limit to half of the capacity or `--cpus=1.5`, in case of a dual core SoC (150% of the combined 200% CPU capacity, i.e. 75% of the total capcity).
`--cpuset-cpus`	Limit the specific CPUs or cores a container can use. The value should be a list of CPU numbers separated by commas `0,1` or a defined range `0-2`.

To use the mentioned parameters to limit the CPU usage or isolate CPUs, launch the container the following way, using both or just one of the options

# docker run --cpus="<value>" --cpuset-cpus <cpus> <dockerhub_username>/<container>

Multiple CPUs can be specified. This command will assign the Docker Container to CPU 0 and 1:

# docker run --cpuset-cpus 0,1 <dockerhub_username>/<container>

A range of CPUs can be specified. This command will assign the Docker Container to CPU 0 through 3:

# docker run --cpuset-cpus 0-3 <dockerhub_username>/<container>

As well, you can limit to half of the CPU capacity, for example

# docker run ---cpus=".5" <dockerhub_username>/<container>

For more information about the parameters and ways to limit CPU cores, refer to Runtime options with Memory, CPUs, and GPUs .

Example

Stress Test Container

Follow the next steps to create and build a container that is able to stress 100% of the available CPU.

The first step is to build a container with a workload generator that imposes a configurable amount of stress on the system. A great example of this is the stress application. Follow the next steps to create and build a container that is able to stress the CPU.

Create a Dockerfile based on a Debian Docker image provided by Toradex at github.
Install the stress application in the RUN command.
Add an ENTRYPOINT to the Dockerfile that calls the stress application in --verbose mode.

The Dockerfile should look like this:

ARG IMAGE_ARCH=linux/arm
# For arm64v8 use:
# ARG IMAGE_ARCH=linux/arm64/v8
FROM --platform=$IMAGE_ARCH torizon/debian:3-bookworm AS base

RUN apt-get update && apt-get install -y stress && rm -rf /var/lib/apt/lists/*

ENTRYPOINT ["/usr/bin/stress", "--verbose"]

Build the container with the desired tag. Select the your SoM from the tabs below.

arm64v8
arm32v7

$ docker build --build-arg IMAGE_ARCH=linux/arm64/v8 -t <dockerhub_username>/stress .

$ docker build -t <dockerhub_username>/stress .

Push it to your docker-hub repository:

$ docker push <dockerhub_username>/stress

Run the Stress Test

Open the terminal of your board and then launch the container. As you can see, this command allows the stress of the 6 cpus at the same time. However, let’s limit the container to use core 0 and 1.

# docker run -it --cpuset-cpus 0,1 <dockerhub_username>/stress --cpu 6
stress: info: [1] dispatching hogs: 6 cpu, 0 io, 0 vm, 0 hdd
stress: dbug: [1] using backoff sleep of 18000us
stress: dbug: [1] --> hogcpu worker 6 [7] forked
stress: dbug: [1] using backoff sleep of 15000us
stress: dbug: [1] --> hogcpu worker 5 [8] forked
stress: dbug: [1] using backoff sleep of 12000us
stress: dbug: [1] --> hogcpu worker 4 [9] forked
stress: dbug: [1] using backoff sleep of 9000us
stress: dbug: [1] --> hogcpu worker 3 [10] forked
stress: dbug: [1] using backoff sleep of 6000us
stress: dbug: [1] --> hogcpu worker 2 [11] forked
stress: dbug: [1] using backoff sleep of 3000us
stress: dbug: [1] --> hogcpu worker 1 [12] forked

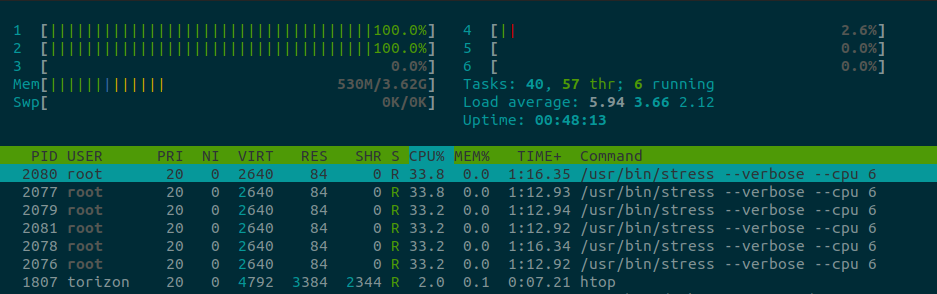

Open another terminal and launch htop. You should see something like this:

Stress Core 0 and 1

Let’s load just 75% of the CPUs 2 and 5, stressing the A53 and A72 cores.

# docker run -it --cpuset-cpus 2,5 --cpus="1.5" <dockerhub_username>/stress --cpu 6
stress: info: [1] dispatching hogs: 6 cpu, 0 io, 0 vm, 0 hdd
stress: dbug: [1] using backoff sleep of 18000us
stress: dbug: [1] --> hogcpu worker 6 [6] forked
stress: dbug: [1] using backoff sleep of 15000us
stress: dbug: [1] --> hogcpu worker 5 [7] forked
stress: dbug: [1] using backoff sleep of 12000us
stress: dbug: [1] --> hogcpu worker 4 [8] forked
stress: dbug: [1] using backoff sleep of 9000us
stress: dbug: [1] --> hogcpu worker 3 [9] forked
stress: dbug: [1] using backoff sleep of 6000us
stress: dbug: [1] --> hogcpu worker 2 [10] forked
stress: dbug: [1] using backoff sleep of 3000us
stress: dbug: [1] --> hogcpu worker 1 [11] forked

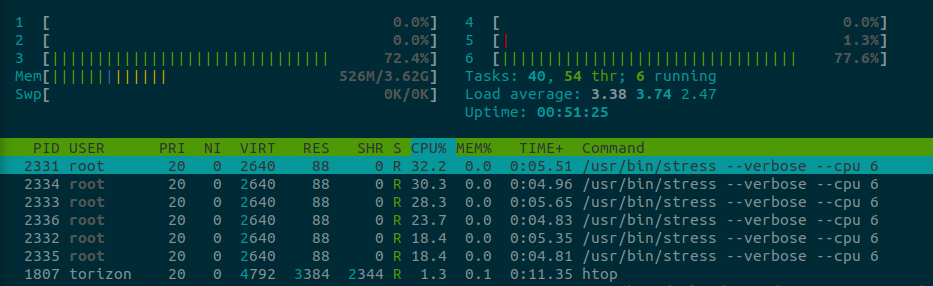

At the htop terminal you should see something like this:

Stress Core 3 and 6

Docker-compose

You can also set CPU limits using a docker-compose file. Be aware that the options to limit the CPU may tweak the name. For instance, the option cpuset-cpus becomes cpuset. The docker-compose below shows a simple model you can use to configure the CPU limits for your container.

version: "<version_number>"

services:
  <service-name>:
    image: <dockerhub_username>/<container>
    cpus: <cpu_resources>
    cpuset: <cpu_numbers>

For the stress test example, the docker-compose file should look like the following one.

version: "2.4"

services:
  stress:
    image: <dockerhub_username>/stress
    cpus: 0.5
    cpuset: 0,1
    command: --cpus 6
